Installing the software:
- Download installation package from our server or www.download.com.
- Run the Installer.
Steps to use the software:

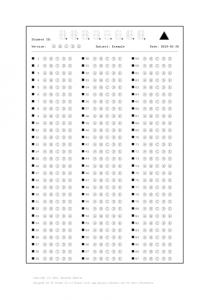

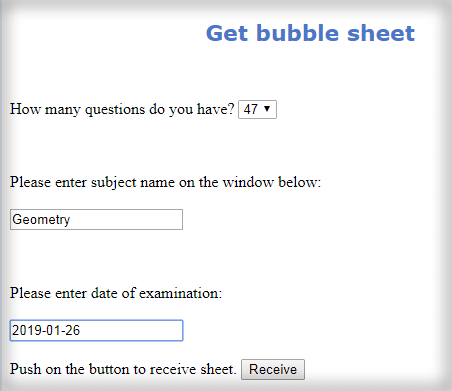

1. You need obtain special bubble sheets designed for the software’s current version. Visit to www.physics-software.com/getsheet and print copies (of course free of charge) as you need.
Please do not use bubble sheets from previous versions saved locally on your computer. Because there may exist differences between coordinate offsets that will lead to wrong grading result.

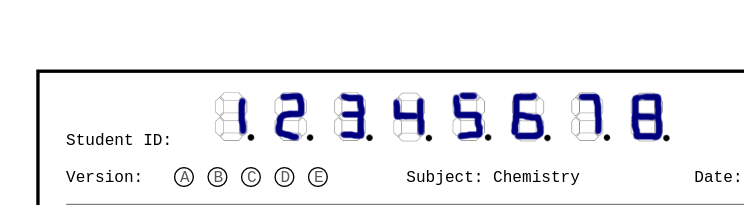

2. Your students should fill their ID on the 7 segment digits on the upper side of the bubble sheet. Student’s ID must be consists of 8 digits. For example 00000001, 00000002, 12345678 … so on. Any other markings and scratches on the bubble sheet’s scan area will cause malfunctioning of the software. Your students may use pen, marker, ball pen and soft lead pencils to fill answer sheet. Shiny ball pen and hard lead pencil may give glare that makes hard to detect filled answers.
Filling Student ID is EASY.
3. You have to enter key. There are methods to enter keys:
- You can directly enter key and respected points and penalties on the table located left side of the application’s main window. There is also a feature save the answer keys for later use. Choose File|Scan Key command.
- You can load prepared key (*.can) file before scan. Keys will be also automatically filled on the left side table of main window. Refer an example *.can file for correct structure or simply replace by keys of the current exam. Please, do not enter any additional white space between columns. The file will found in installation folder of the application.

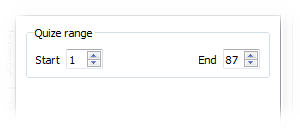

- You can scan a bubble sheet with key answers. The software supports scan of multiple version answer sheet. If the examine has multiple version you need enter key for each version separately. In case of single version answer sheet you have to fill only A column, you student should fill A on “Version:” section of the bubble sheet. Be green! 🙂 You can use a bubble sheet twice or more times, adjusting starting and ending number of quiz. Make sure there is no overlapping end of previous quiz number and beginning number of current quiz if you are using same sheet for series of exam.

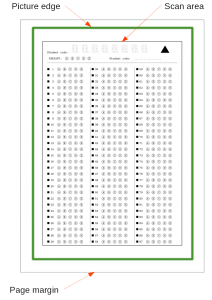

4. Take pictures of bubble sheet after the examine using camera, smart phone or scanner. You do not need to sort or collate even rotate the sheet for aligning header. Edge of your picture should lay between page margin and scan area. It is very important! Picture edge is shown by green rectangle. See following image. The most convenient picture size is 2048×1536. Smaller picture is error prone, bigger picture requires more computer resource.
5. Copy pictures into a new folder.

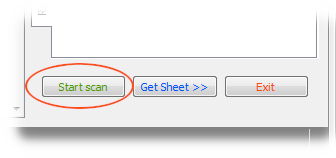

6. Push the Start scan button and select and open the folder created in Step 5. Percentage of processing and name of picture files will appear on status bar. Scanning is intensive process, so you cannot exit from the software while it is running. Please do not change any configuration until it finishes.
7. While processing of answer sheets, copies of scanned pages will be saved as JPG image. Please check these images if you have any doubt about scan result. If there are errors, misidentifies please try change Sensitivity of corresponding field(s). If your pictures blurry, or bad lightened you mostly need decrease sensitivity.
BT Grader’s Interface
Here are shown main window’s screenshot of BT Grader V1.1.0.
Main menu, key table, status bar, configuration, Scan, Get sheet, Exit button
